Key Features
- Model: GA-H81M-H
- Supported CPU: 4th Generation Intel Core processors (LGA1150)
- Supported RAM: 2 x 1.5V DDR3 DIMM up to 16 GB 1600MHz
- Graphics Output: 1 x D-Sub, 1 x HDMI
- Features: LAN with high ESD Protection
Specification
| Basic Information | ||
| Supported CPU | Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package L3 cache varies with CPU | |
| Chipset | Intel H81 Express Chipset | |
| BIOS | 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm | |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots | |
| Memory | ||
| Type | DDR3 | |
| Slots | 2 x 1.5V DIMM sockets | |
| Supported Memory | Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Maximum Memory | 16 GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz * Support for HDMI 1.4a version. | |
| Max Shared Memory | 1 GB | |

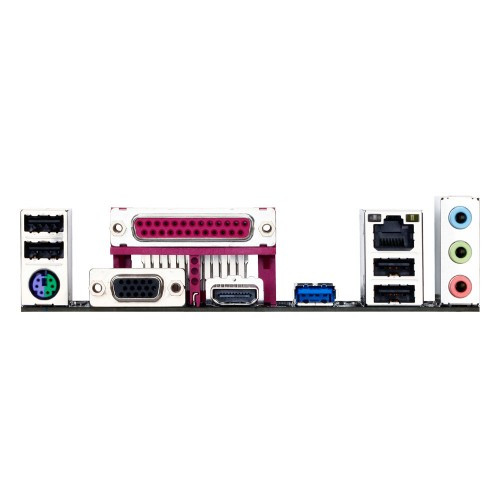

| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| D-Sub (s) | 1 x D-Sub | |
| USB (s) | Chipset: 2 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) 2 x SATA 3Gb/s connectors (SATA2 2/3) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper | |
| Others | ||
| Special Features | Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Smart TimeLock Smart Recovery 2 Support for ON/OFF Charge | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
