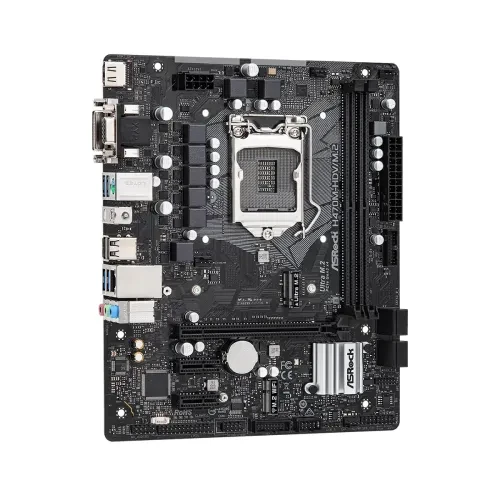

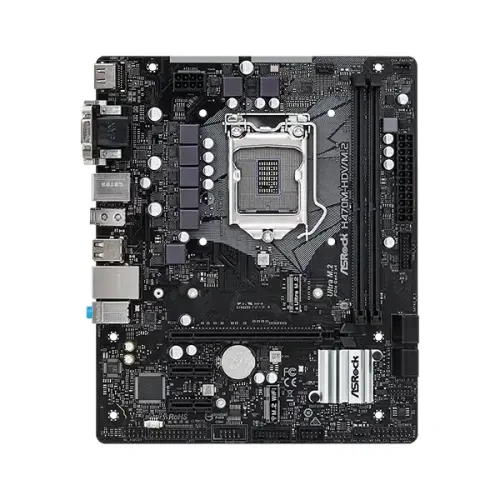

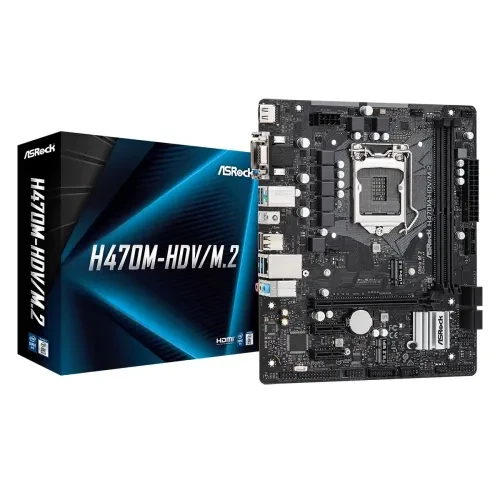

ASRock H470M-HDV/M.2 10th Gen Micro ATX Motherboard
Brand
ASRock
SKU
Todays Deal
Exclusive for today only
Key Features
- Model: H470M-HDV/M.2
- CPU Support: 10th Gen Intel Core Processors (Socket 1200)
- RAM Support: DDR4 2933 MHz
- Graphics Output: HDMI, DVI-D, D-Sub
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
Specification
| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core Processors (Socket 1200) Digi Power design 7 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology | |
| Chipset | Intel H470 | |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment | |
| Form Factor | Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm Solid Capacitor design | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection | |
| Expansion Slots | ||
| PCI | 1 x PCI Express 3.0 x16 Slot* 2 x PCI Express 3.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM Slots | |
| Supported Memory | Dual Channel DDR4 Memory Technology Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots | |
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1 - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port | |

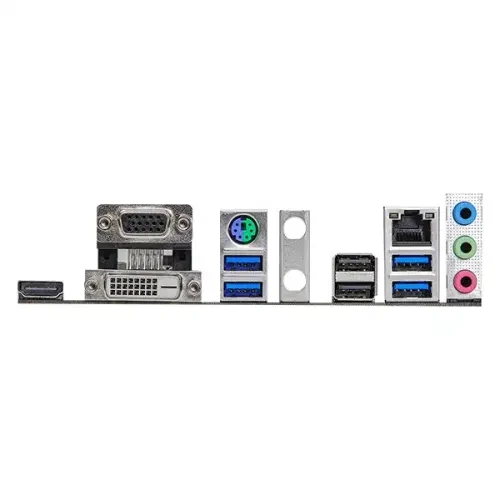

| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| D-Sub (s) | 1 x D-Sub port | |
| DVI-D (s) | 1 x DVI-D port | |
| LAN Port (s) | Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE | |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) | |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | 1 x Print Port Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | ||
| Special Features | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
